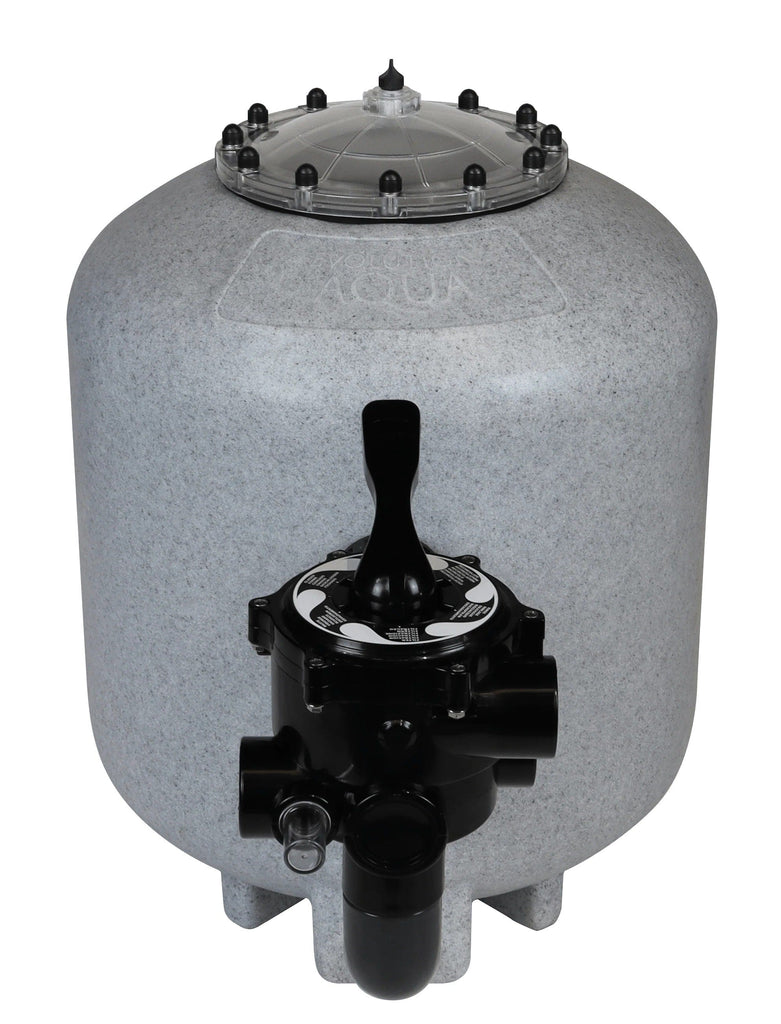

Evolution Aqua K+ Advanced 20" Filter
Advanced pressure filters for ponds using K+Media.
Introducing Evolution Aqua's latest innovation in pond filtration technology, the K+Advanced Filters.
Manufactured by Evolution Aqua in the UK, this new range of pressure filters have been specifically designed to use Evolution Aqua’s own filtration media, K+Media, to deliver exceptional water clarity and to be economical to run.
Key Features
-
Manufactured to last using latest rotational moulding process for peace of mind
-
Supplied with advanced K+Media, delivering enhanced mechanical and biological filtration
-
Economical to run. The filter has been engineered to maximise pump efficiency
-
The colour matches existing Evolution Aqua filters
-
Easy to operate and clean, with pipework, blower and multiport valve supplied.
Specifications
| Model | Diameter | Maximum Pond Size |
Optimum Flow Rate |
Volume Of K+Advanced Media |
Multiport Valve Size |
Max. Working Pressure |
| K+AdvancedFilter20 | 20" (500mm) | 18,000 Litres |
6,000 LPH |
50 Litres | 1½" | 1.5 Bar |
| K+AdvancedFilter24 | 24" (620mm) | 36,000 Litres | 12,000 LPH | 100 Litres | 2" | 1.5 Bar |
| K+AdvancedFilter30 | 30" (750mm) | 54,500 Litres | 18,000 LP | 150 Litres | 2" | 1.5 Bar |
| K+AdvancedFilter36 | 36" (900mm) | 91,000 Litres | 30,000 LPH | 250 Litres | 2" | 1.5 Bar |
How K+Advanced Filters work?
Water is pumped into the filter from the pond, through the multi-port valve where the internal pipework directs the water to the bottom laterals.As the water flows upwards inside the K+Advanced Filter, dirt, debris and waste are trapped within the mass of K+Media that floats at the top of the filter. The vast protected surface area provided by K+Media also provides a home for beneficial bacteria, delivering mechanical and biological filtration.
The filtered water flows back through the laterals and pipework at the top of the filter, through the multi-port valve and back down the return line into the pond.
The K+Advanced Filter, is incredibly easy to clean by simply moving the handle on the multi-port valve into the corresponding positions to perform a backwash and rinse which flushes out the waste trapped inside.
