Waterbox Infinia Reef 230.6 (1836 x 643 x 600mm) - Black

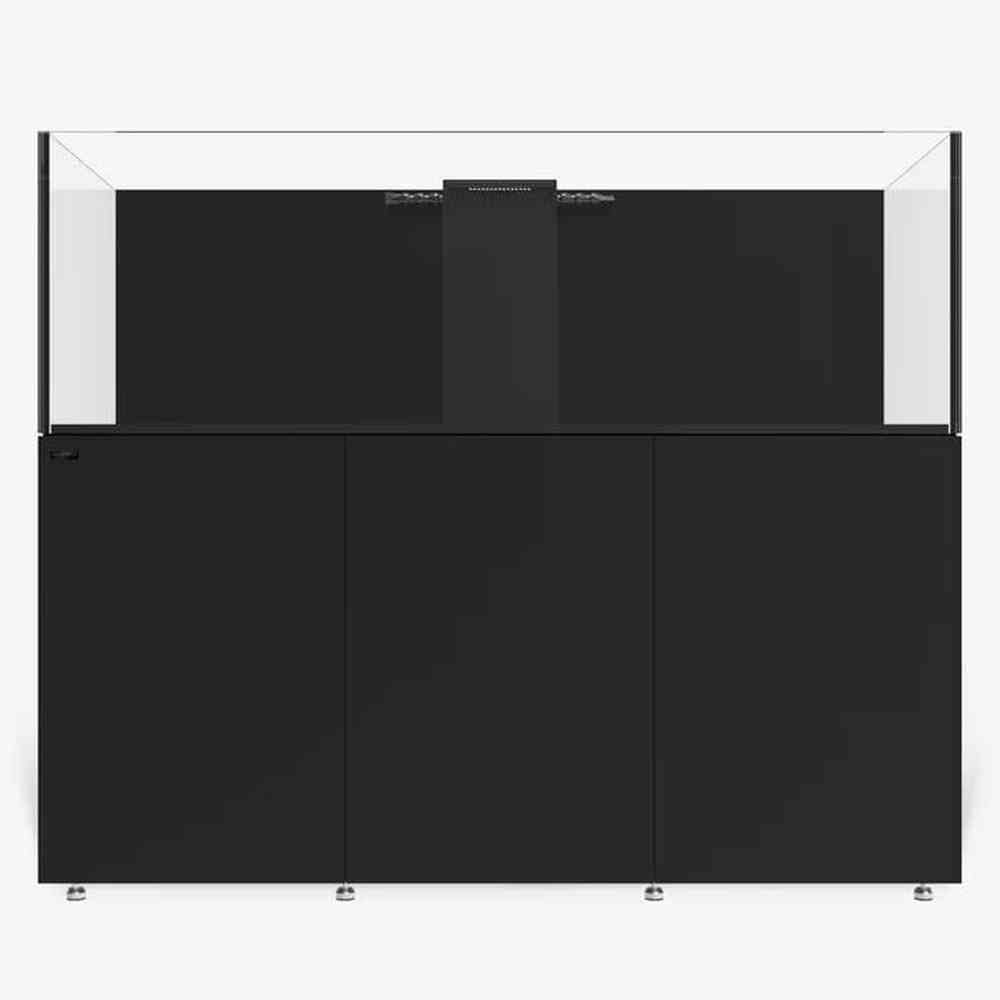

Waterbox Infinia Reef 230.6 Black
-
Dimensions (LxWxH): 1,836 x 643 x 600mm
-
Height with Cabinet: 1,527 mm
-
Display Volume: 632 L
-
Total Volume: 875 L
-
Glass Thickness: 19 mm
-
Includes: Aquarium, Cabinet, Sump, Plumbing Kit, Filter Socks, Sock Silencers
| Product Model | INFINIA REEF 150.4 |
INFINIA REEF 190.5 |
INFINIA REEF 230.6 |
|
|---|---|---|---|---|
| System | Height with Cabinet | 1,477mm/58.2" | 1,502mm/59.1" | 1,527mm/60.1" |
| Total Volume with ATO | 577 L/152.5 gals | 747 L/197.4 gals | 875 L/231.2 gals | |
| Estimated Weight (Dry) | 189kg (416 lbs) | 280kg (617 lbs) | 363kg (800 lbs) | |
| Display Tank |
Tank Dimensions | 1,223 x 643 x 550mm | 1,536 x 643 x 575mm | 1,836 x 643 x 600mm |
| 48.2" × 25.3" × 21.7" | 60.5" × 25.3" × 22.6" | 72.3" × 25.3" × 23.6" | ||
| Glass Thickness | 12mm (1/2") | 15mm (3/5″) | 19mm (3/4") | |
| Aquarium Volume | 399 L/105.5 gals | 517 L/136.6 gals | 632 L/167 gals | |
| Glass Material | Ultra-clear Low Iron glass (front and sides) | |||
| Transmittance | 91% | |||
| In-cabinet Sump |
Dimensions | 864 x 475 x 380mm | 1,067 x 475 x 380mm | 1,143 x 475 x 380mm |
| 34" × 18.7" × 15" | 42" × 18.7" × 15" | 45" × 18.7" × 15" | ||
| Sump Volume | 145 L/38.3 gals | 179 L/47.4 gals | 192 L/50.8 gals | |
| Glass Thickness | 8mm (5/16") | |||
| Refugium Chamer (Max Int. Dimensions) |
180 x 400mm | 250 x 400mm | 300 x 400mm | |
| 7.1" × 15.8" | 9.8" × 15.8" | 11.8" × 15.8" | ||
| Refugium Chamer (Min Int. Dimensions) |
140 x 400mm | 200 x 400mm | 230 x 400mm | |
| 5.5" × 15.8" | 7.9" × 15.8" | 9.1" × 15.8" | ||
| Skimmer Chamber (Int. DIM, w/o Refugium) |
442 x 400mm | 600 x 400mm | 676 x 400mm | |
| 17.4" × 15.8" | 23.6" × 15.8" | 26.6" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Min Refugium) |
297 x 400mm | 395 x 400mm | 441 x 400mm | |
| 11.7" × 15.8" | 15.6" × 15.8" | 17.4" × 15.8" | ||
| Skimmer Chamber (Int. DIM, with Max Refugium) |
257 x 400mm | 345 x 400mm | 371 x 400mm | |
| 10.1" × 15.8" | 13.6" × 15.8" | 14.6" × 15.8" | ||
| Pump Chamber (Int. Dimensions) |
135x 400mm | 180 x 400mm | 180 x 400mm | |
| 5.3" × 15.8" | 7.1" × 15.8" | 7.1" × 15.8" | ||
| Filter Sock Chamber Dimensions |
215 x 382mm | 215 x 382mm | 215 x 382mm | |
| 8.5" x 15" | 8.5" x 15" | 8.5" x 15" | ||
| ATO Tank |
ATO Dimensions | 203 x 475 x 380mm | 305 x 475 x 380mm | |
| 8" × 18.7" × 15" | 12" × 18.7" × 15" | |||
| ATO Volume | 33 L/8.7 gals | 51 L/13.4 gals | ||
| Glass Thickness | 6mm (1/4") | 6mm (1/4") | ||
| Plumbing | Main Drain | DN32 (40mm/1-1/2") | ||
| Emergency Overflow | DN32 (40mm/1-1/2") | |||
| Pump Return | DN25 (32mm/1-1/4") | |||
| Nozzle(s) | 2 x DN20 (25mm/1") | |||
| Manifold Kit | Manifold 15 (Single outlet) | |||
| Filtration | Filter Socks | 2 x 180mm/7" MESH | ||
| Filter Sock Silencers | 2 x 180mm/7" | |||
| Interchangable with Roller Filter | YES | |||
| Marine- Shield Cabinet |
Cabinet Model | MSII 4825 | MSII 6025 | MSII 7225 |
| Cabinet Dimensions | 1,223 x 643 x 927mm | 1,536 x 643 x 927mm | 1,836 x 643 x 927mm | |
| 48.2" × 25.3" × 36.5" | 60.5" × 25.3" × 36.5" | 72.3" × 25.3" × 36.5" | ||
| Sump Compartment (Int. Dimensions) |
1,093 x 572 x 848mm | 1,406 x 541 x 848mm | 1,706 x 541 x 848mm | |
| 43" × 22.5" × 33.4" | 55.4" × 21.3" × 33.4" | 67.2" × 21.3" × 33.4" | ||
| Cabinet Framework | Anti-corrosion Aluminum Alloy | |||
| Door Panels | 18mm Plywood, Water-resistant PU coated | |||
| Side Panels | Aluminum Composite | |||
| Bottom Panels | 10mm PVC Board | |||
| Back Panels | 5mm PVC Board | |||
| Cabinet Color | WHT-White, BLK-Black | |||
* All volumes are calculated from net tank dimension less the glass thickness. They may vary dependent on user configuration and system application.
** All specifications are subject to changes without prior notice.
